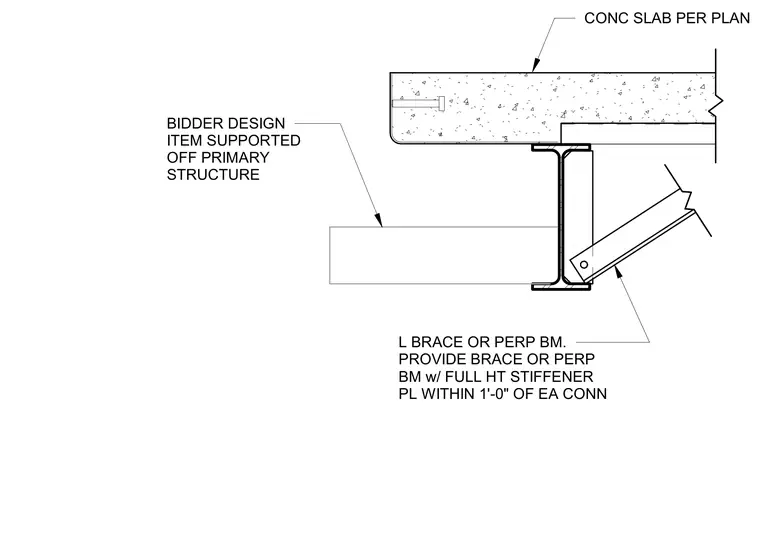

A structural steel beam supports a concrete slab above and connects to a diagonal brace member. The diagonal brace or perpendicular beam requires a full-height stiffener plate within one foot of each connection. A bidder-designed item is supported directly off the primary structural frame per plan.
L BRACE OR PERP BM. PROVIDE BRACE OR PERP BM w/ FULL HT STIFFENER PL WITHIN 1'-0" OF EA CONN CONC SLAB PER PLAN BIDDER DESIGN ITEM SUPPORTED OFF PRIMARY STRUCTURE
