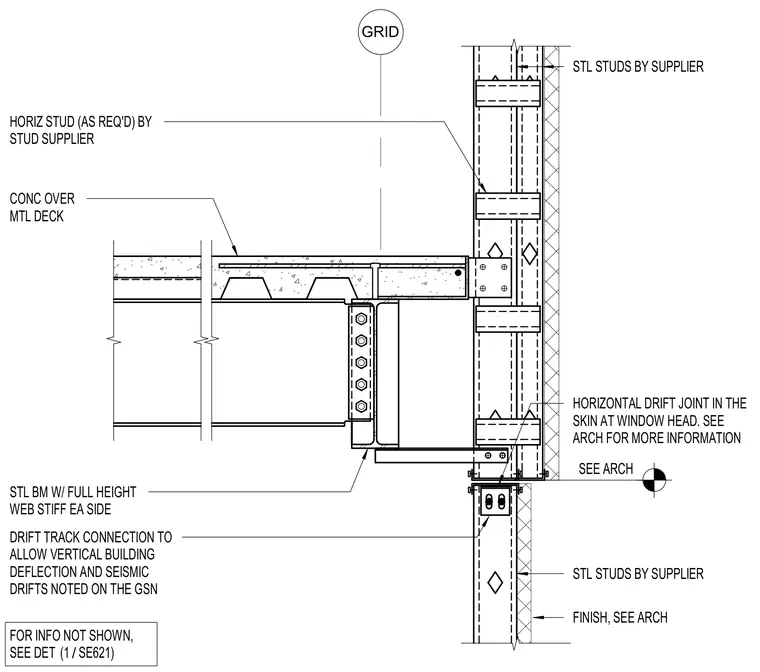

A concrete slab over metal deck bears on a structural steel beam equipped with full-height web stiffeners on each side. The steel framing aligns with a grid line and connects to steel studs provided by the supplier. A drift track connection is incorporated to accommodate vertical building deflection and seismic drifts. A horizontal drift joint is located in the skin at the window head for coordination with architectural requirements.
GRID SEE ARCH STL STUDS BY SUPPLIER FINISH, SEE ARCH STL STUDS BY SUPPLIER DRIFT TRACK CONNECTION TO ALLOW VERTICAL BUILDING DEFLECTION AND SEISMIC DRIFTS NOTED ON THE GSN CONC OVER MTL DECK STL BM W/ FULL HEIGHT WEB STIFF EA SIDE FOR INFO NOT SHOWN, SEE DET / (1 SE621) HORIZONTAL DRIFT JOINT IN THE SKIN AT WINDOW HEAD. SEE ARCH FOR MORE INFORMATION HORIZ STUD (AS REQ'D) BY STUD SUPPLIER
