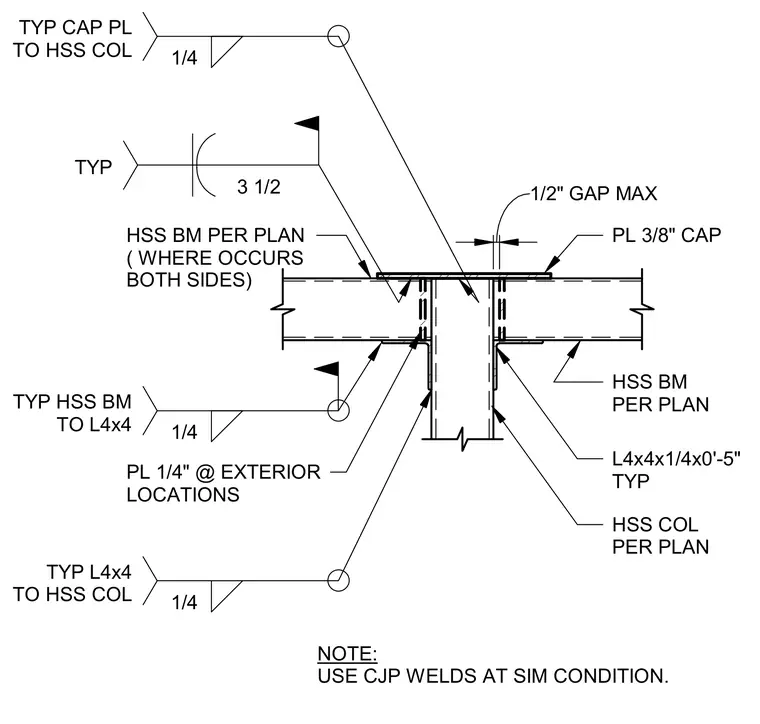

An HSS beam connects to an HSS column using a 3/8-inch cap plate at the top and L4x4x1/4 seat angles underneath, with a maximum 1/2-inch gap maintained at the column face. The seat angles measure five inches in length and are secured to the HSS column with typical quarter-inch fillet welds. The HSS beams frame into the seat angles with typical quarter-inch fillet welds. A quarter-inch plate is added at exterior locations, and complete joint penetration welds are specified for similar conditions.
1/2" GAP MAX HSS BM PER PLAN L4x4x1/4x0'-5" TYP HSS COL PER PLAN PL 3/8" CAP HSS BM PER PLAN ( WHERE OCCURS BOTH SIDES) PL 1/4" @ EXTERIOR LOCATIONS NOTE: USE CJP WELDS AT SIM CONDITION. 3 1/2 TYP 1/4 TYP L4x4 TO HSS COL 1/4 TYP CAP PL TO HSS COL 1/4 TYP HSS BM TO L4x4
