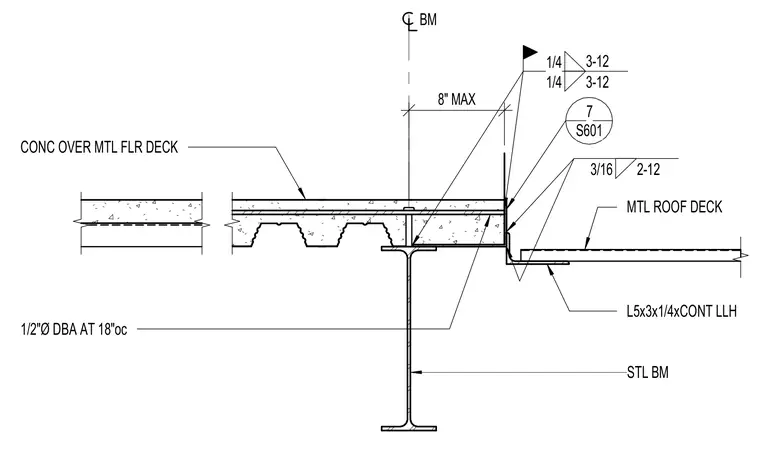

A continuous angle supports a metal roof deck adjacent to a concrete-filled metal floor deck bearing on a steel beam. One-half-inch diameter deformed bar anchors are spaced at eighteen inches on center. Fillet welds secure the transition assemblies with specified sizes and intervals.
STL BM 3/16 2-12 BM MTL ROOF DECK L5x3x1/4xCONT LLH 8" MAX CONC OVER MTL FLR DECK 1/2"Ø DBA AT 18"oc 1/4 3-12 1/4 3-12 S601 7
