Structural · S-P5CYD

Steel Beam to Column SFRS Collector Connection

Materials

Concrete Steel Metal (misc.)

Elements

Roofs Decks Connections / Plates

Connections

Welded Connection Bolted Connection Deck Attachment

About this detail

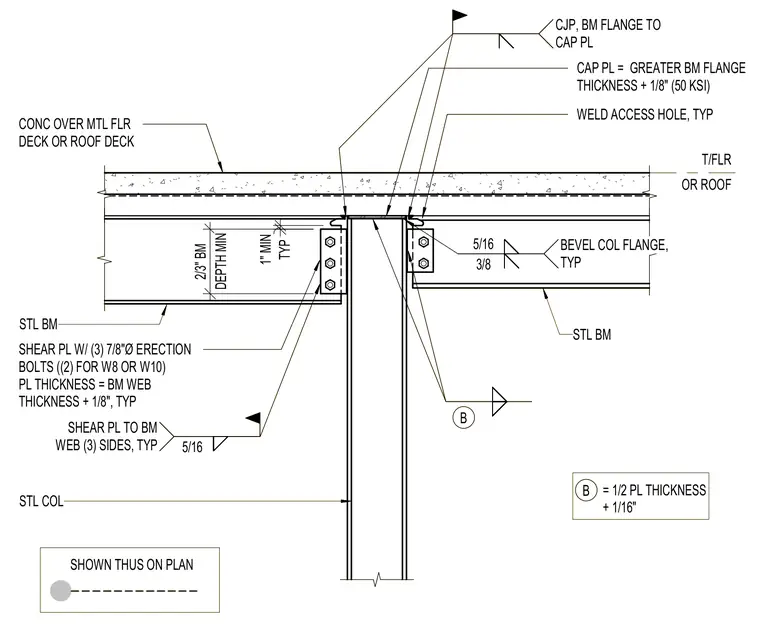

A steel beam frames into a steel column with a special seismic force resisting system (SFRS) collector connection. The steel beam web connects to the column via a shear plate secured by three seven-eighths-inch diameter erection bolts, reduced to two bolts for W8 or W10 shapes. The shear plate thickness equals the beam web thickness plus one-eighth of an inch, welded to the beam web on three sides with a five-sixteenths-inch fillet weld. A steel beam cap plate sized to the greater beam flange thickness plus one-eighth of an inch at fifty ksi is welded to the top of the column with a complete joint penetration weld. A standard weld access hole is provided at the beam web, and the column flange features a three-eighths-to-five-sixteenths-inch bevel. Concrete over metal floor or roof deck bears above the steel framing members.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
