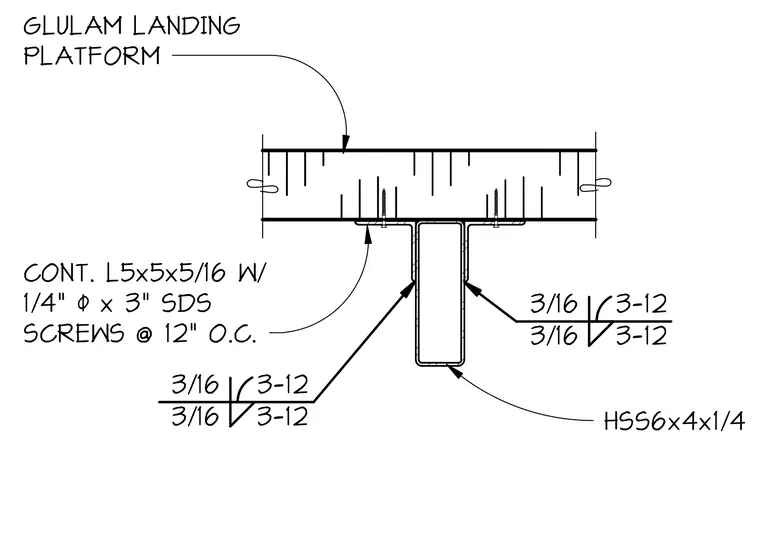

A glulam landing platform bears on a continuous hollow structural section steel member designated as HSS6x4x1/4. The structural support assembly utilizes a continuous 5-by-5-inch by 5/16-inch steel angle secured to the underside of the glulam platform with quarter-inch diameter by 3-inch self-drilling screws spaced at 12 inches on center. The steel angle and support components are connected with 3/16-inch fillet welds configured with intermittent or specified spacing.
GLULAM LANDING PLATFORM HSS6x4x1/4 CONT. L5x5x5/16 W/ 1/4" + x 3" SDS SCREWS @ 12" O.C. 3/16 3-12 3/16 3-12 3/16 3-12 3/16 3-12
