Structural · S-P4V2K

Steel Beam to HSS Column Cap Plate Connection Details

Materials

Steel

Elements

Columns Beams Connections / Plates

Connections

HSS Connection Welded Connection Bolted Connection

About this detail

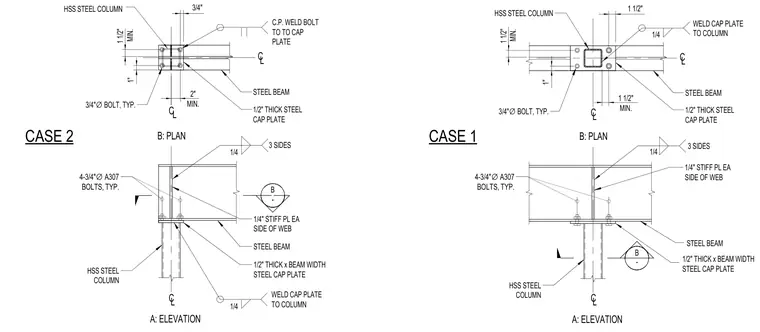

A steel beam frames into a hollow structural section steel column utilizing a half-inch thick steel cap plate matching the beam width. The cap plate is secured to the hollow structural section steel column with a one-quarter-inch fillet weld on three sides. The steel beam attaches to the cap plate using four three-quarter-inch diameter ASTM A307 bolts, typically detailed with one-quarter-inch stiffener plates on each side of the web welded on three sides. Plan and elevation views provide minimum edge distances, bolt spacings, and centerline alignments for both connection configurations.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
