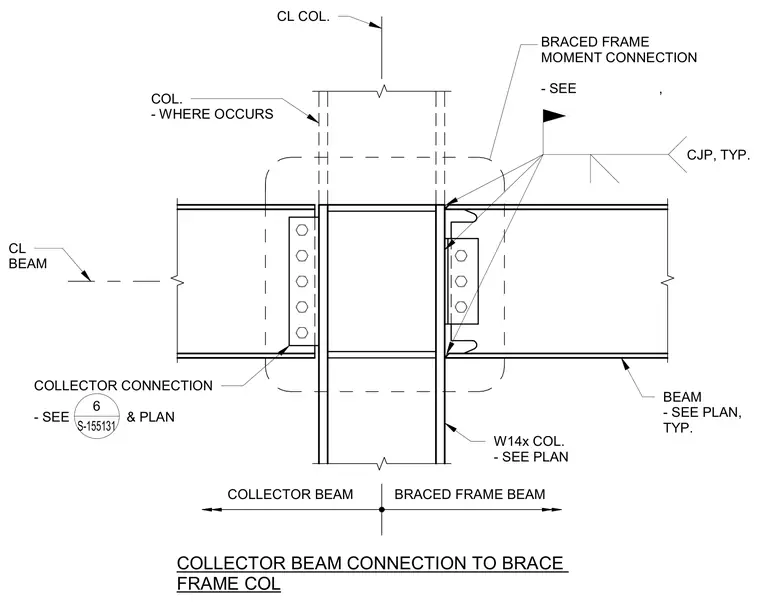

A collector beam and a braced frame beam frame into a W14 column with complete joint penetration welds typically specified at the column flanges. A bolted shear connection secures the beam web to the column connection plate. The braced frame moment connection details are sized per plan. Field weld symbols are indicated for structural continuity.
W14x COL. - SEE PLAN BRACED FRAME MOMENT CONNECTION - SEE , BEAM - SEE PLAN, TYP. CL BEAM CJP, TYP. CL COL. COL. - WHERE OCCURS COLLECTOR CONNECTION - SEE & PLAN 6 S-155131 COLLECTOR BEAM BRACED FRAME BEAM COLLECTOR BEAM CONNECTION TO BRACE FRAME COL
