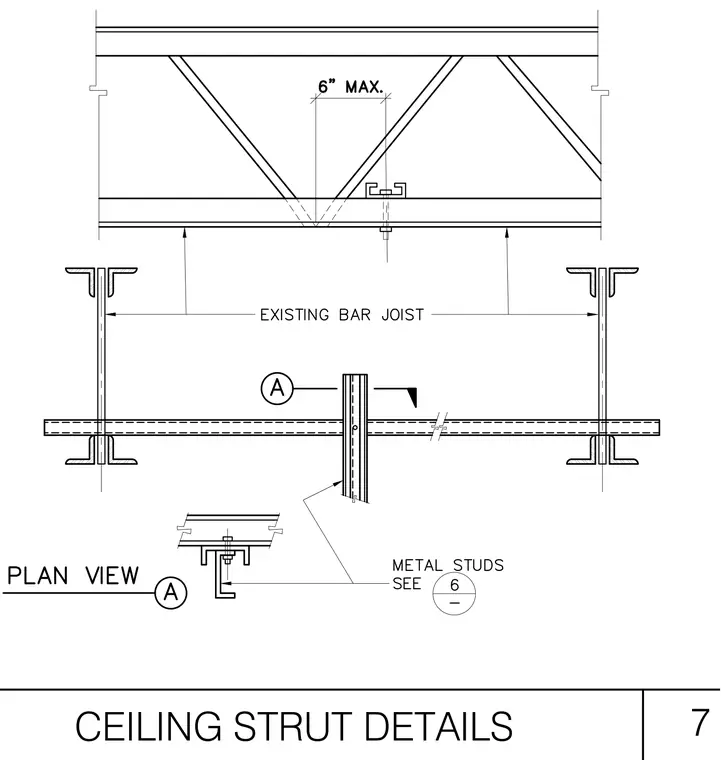

A ceiling strut assembly connects to an existing open-web steel bar joist with a maximum six-inch clearance to the web member. Metal studs run perpendicular between supporting framing members, secured with mechanical fasteners and anchorage details. Plan view A indicates the orientation and connection of the strut to the ceiling framing.
