Typical BRBF Column Anchorage

Materials

Concrete Steel Masonry / CMU

Elements

Columns Floors / Slabs Foundations / Footings Arches Anchors / Embeds Connections / Plates Reinforcing

Connections

Braced Frame Connection Base Plate / Anchorage Bolted Connection Rebar Splice / Development Embed Plate

About this detail

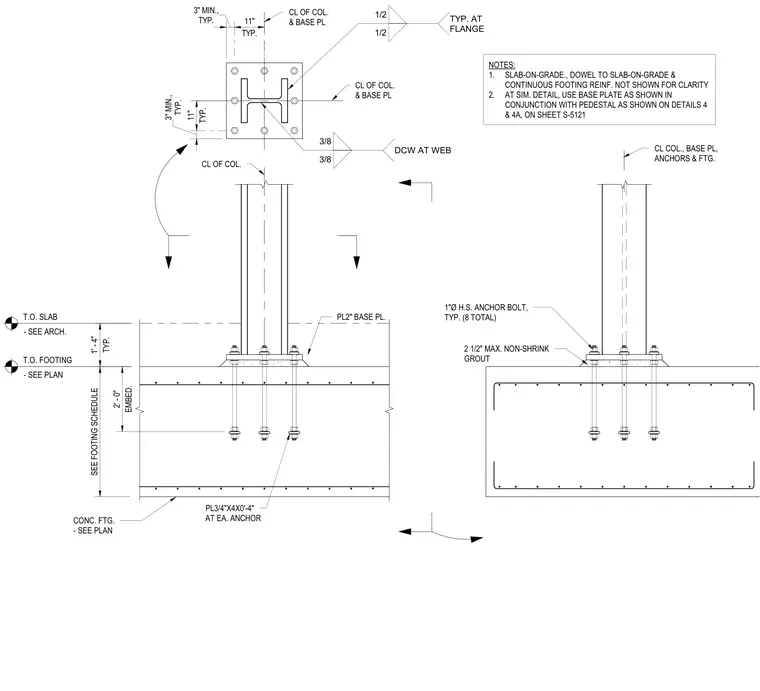

A steel column connects to a thick base plate resting on a concrete footing with a two-and-a-half-inch maximum layer of non-shrink grout beneath. Eight total one-inch diameter high-strength anchor bolts with embedded anchor plates secure the assembly into the footing with a two-foot embedment depth. Fillet welds connect the column flanges and web to the base plate, including half-inch welds at the flange and three-eighths-inch welds at the web. General notes clarify that slab-on-grade reinforcing and continuous footing reinforcement are omitted for clarity.
