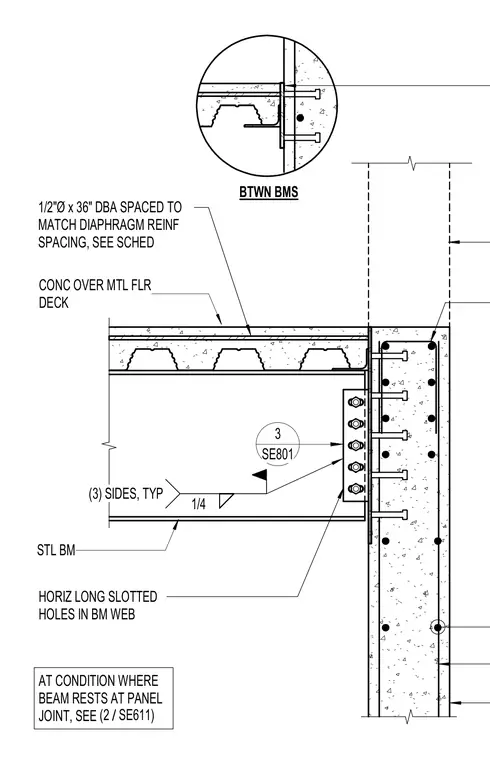

A structural steel beam frames into a concrete wall with horizontal long slotted holes in the beam web. The beam is supported at a panel joint condition where concrete covers the metal floor deck between beams. A series of headed stud anchors are spaced along the embedment plate to match the diaphragm reinforcement spacing per schedule. Fillet welds of one-quarter inch are specified on three sides typically.
STL BM HORIZ LONG SLOTTED HOLES IN BM WEB CONC OVER MTL FLR DECK BTWN BMS AT CONDITION WHERE BEAM RESTS AT PANEL JOINT, SEE 1/2"Ø x 36" DBA SPACED TO MATCH DIAPHRAGM REINF SPACING, SEE SCHED / (2 SE611) 3 SE801 1/4 (3) SIDES, TYP
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
