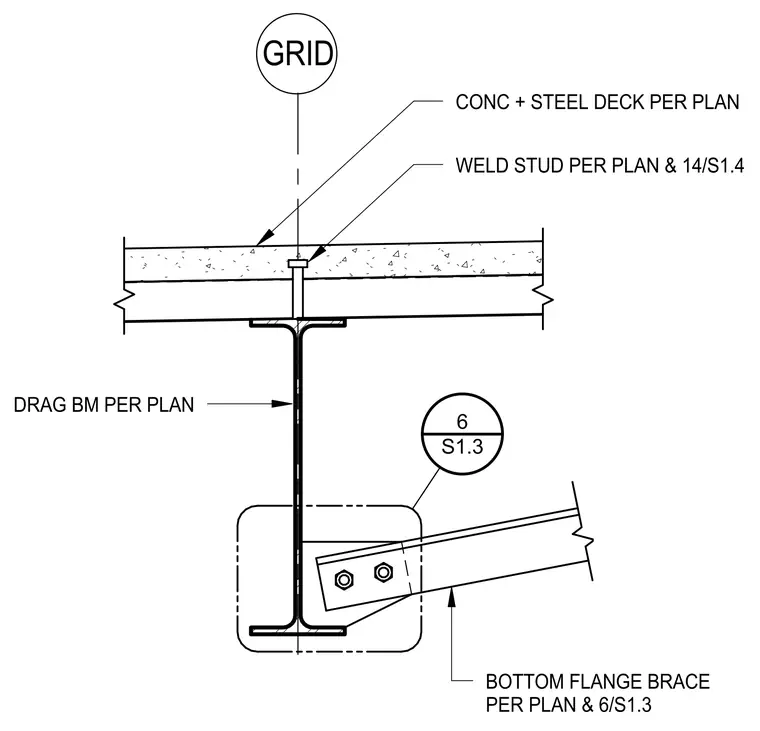

A bottom flange brace frames into the web of a structural steel drag beam. The drag beam is tied to an overlying concrete and steel deck assembly using headed shear stud anchors sized per plan. A diagonal bottom flange brace connects to a gusset plate welded or bolted to the drag beam web per plan and coordinated with sheet S1.3. Grid alignment and deck specifications are maintained per structural plans.
GRID BOTTOM FLANGE BRACE PER PLAN & 6/S1.3 S1.3 6 DRAG BM PER PLAN WELD STUD PER PLAN & 14/S1.4 CONC + STEEL DECK PER PLAN
