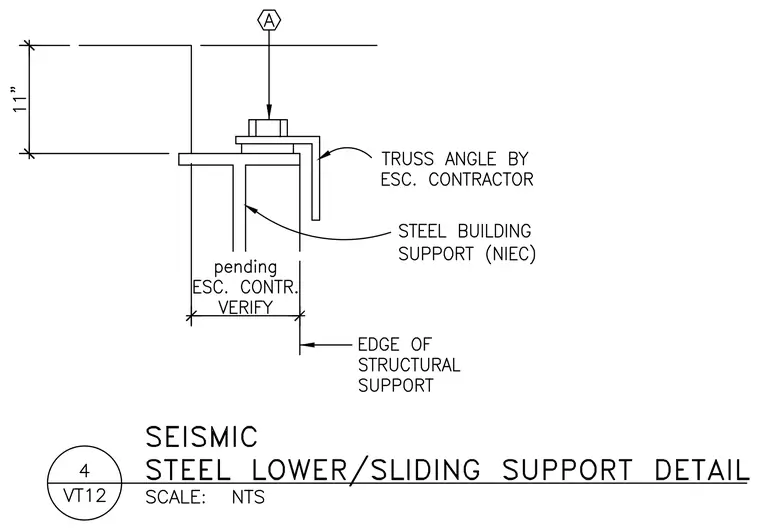

This seismic steel lower sliding support detail features a truss angle provided by the escalator contractor resting atop a structural steel building support. An eleven-inch vertical clearance dimension is indicated, along with a verification dimension for the steel support width. The truss angle connects via a bolted sliding connection aligned with a designated structural support edge.
