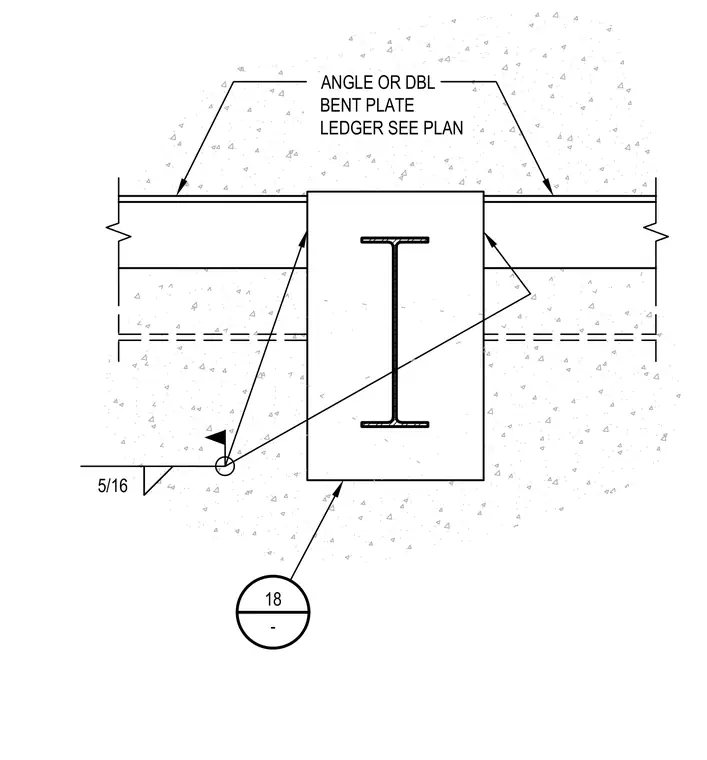

An angle or double bent plate ledger connects across a structural steel member embedded in concrete. A five-sixteenth-inch fillet weld secures the connection assembly. The ledger configuration follows the structural layout specified on the framing plans.
