Precast concrete treads set within a metal stair assembly connect to an intermediate concrete landing. Steel angles support the stair framing, and steel balusters anchor to the assembly. The stair alignment matches the face of tread typically.

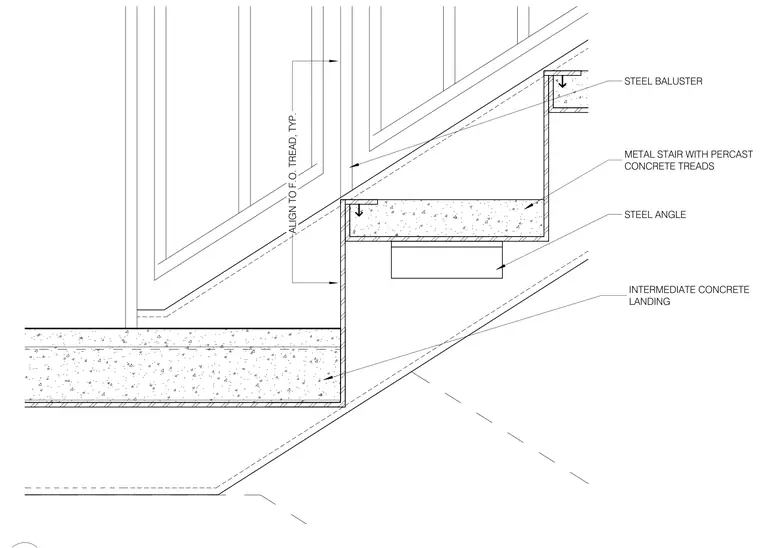

ALIGN TO F.O. TREAD, TYP. INTERMEDIATE CONCRETE LANDING METAL STAIR WITH PERCAST CONCRETE TREADS STEEL BALUSTER STEEL ANGLE
