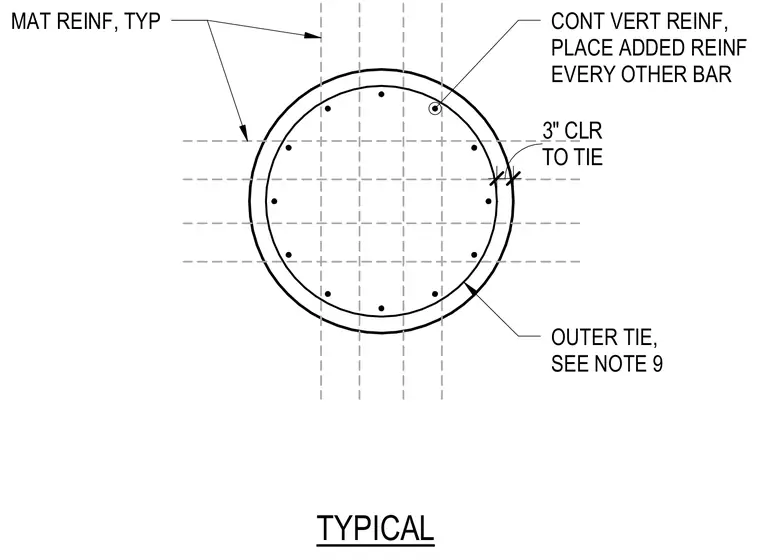

A drilled shaft foundation cross-section features continuous vertical reinforcement and an outer tie cage. Added reinforcement is placed at every other vertical bar. A standard 3-inch clear cover is maintained to the outer tie. Grid mat reinforcement runs through the section.
TO TIE 3" CLR OUTER TIE, SEE NOTE 9 CONT VERT REINF, PLACE ADDED REINF EVERY OTHER BAR MAT REINF, TYP TYPICAL
