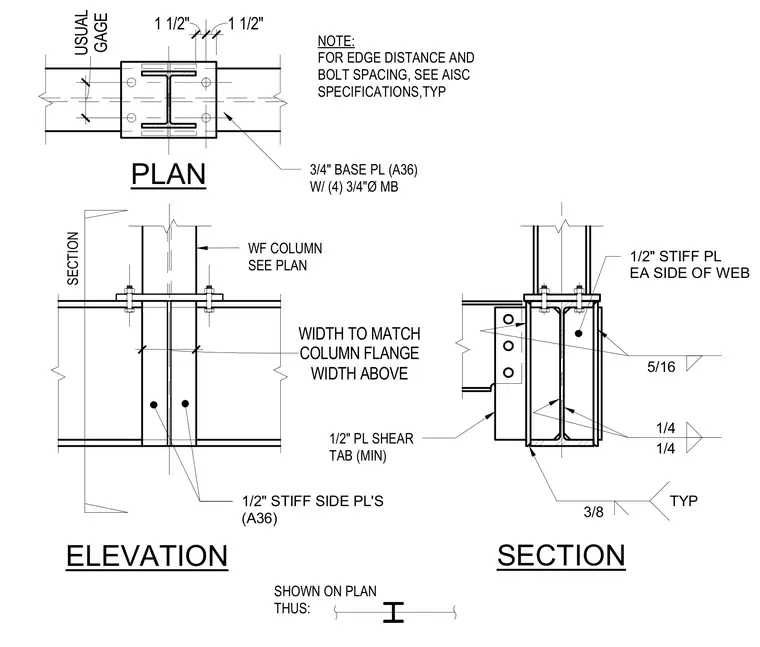

A wide flange column base connection incorporates a three-quarter-inch A36 steel base plate secured with four three-quarter-inch diameter machine bolts. Half-inch stiffener plates are welded to each side of the column web using quarter-inch fillet welds. A half-inch minimum plate shear tab connects to the assembly with a five-sixteenth-inch fillet weld, while three-eighths-inch typical fillet welds anchor the base elements. Additional half-inch A36 side stiffener plates match the width of the column flange above. Edge distance and bolt spacing conform to standard AISC specifications.
SECTION SHOWN ON PLAN THUS: SECTION PLAN ELEVATION WF COLUMN SEE PLAN NOTE: FOR EDGE DISTANCE AND BOLT SPACING, SEE AISC SPECIFICATIONS,TYP 1/2" STIFF SIDE PL'S (A36) 1/2" PL SHEAR TAB (MIN) 3/4" BASE PL (A36) W/ (4) 3/4"Ø MB 1/2" STIFF PL EA SIDE OF WEB 3/8 TYP 1/4 1/4 5/16 WIDTH ABOVE WIDTH TO MATCH COLUMN FLANGE 1 1/2" 1 1/2" GAGE USUAL
