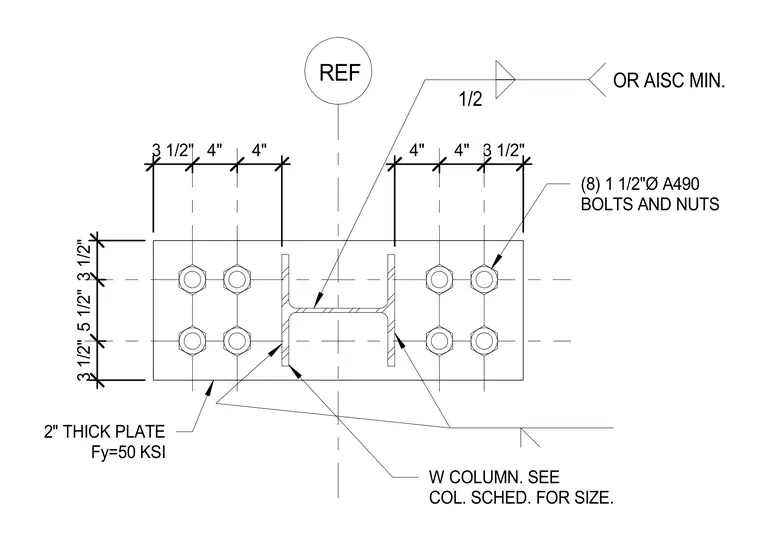

A wide flange column connects to a two-inch thick steel plate with a yield strength of fifty kilopounds per square inch. Eight one-and-a-half-inch diameter A490 bolts and nuts fasten through the plate around the column flanges. A one-half-inch fillet weld, or American Institute of Steel Construction minimum, secures the column profile to the plate. The column size is determined per the column schedule.
W COLUMN. SEE COL. SCHED. FOR SIZE. 3 1/2" 4" 4" 4" 4" 3 1/2" 3 1/2" 5 1/2" 3 1/2" REF (8) 1 1/2"Ø A490 BOLTS AND NUTS 2" THICK PLATE Fy=50 KSI 1/2 OR AISC MIN.
