Structural · S-P3REF

Steel Edge Beam Stiffener and Connection Details

Materials

Concrete Steel

Elements

Beams Roofs Floors / Slabs Decks Connections / Plates

Connections

Welded Connection Deck Attachment

About this detail

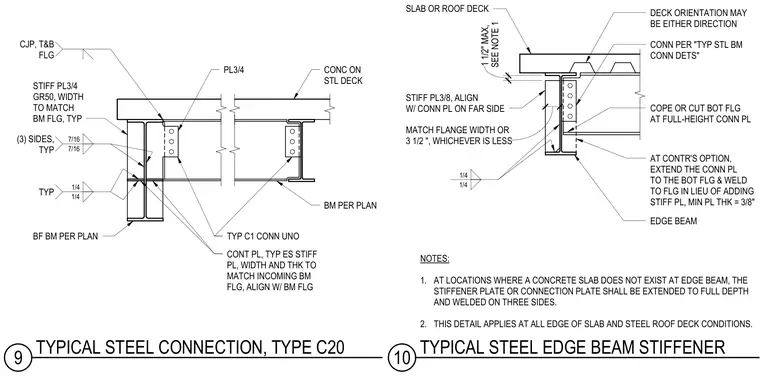

Steel framing connections occur at edge beams supporting concrete slabs on metal deck or roof decks. The assembly incorporates a connection plate on the incoming beam web, combined with stiffener plates aligned with the beam flanges and welded on three sides. Where a concrete slab does not exist at the edge beam, the connection plate extends to the full depth of the member. Complete joint penetration welds occur at the top and bottom flanges, supplemented by fillet welds as indicated on the drawing notes. Contractors have the option to extend the connection plate to the bottom flange and weld it directly in lieu of adding a separate stiffener plate.
