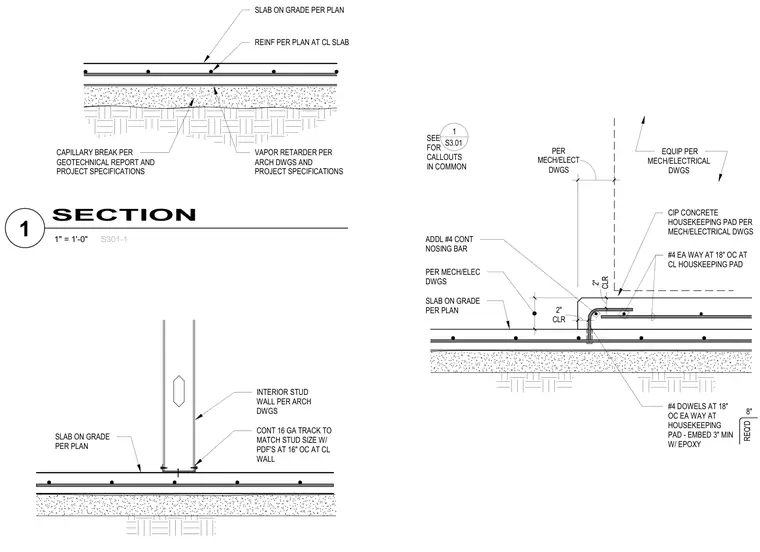

This structural section details concrete slab on grade conditions including a capillary break, vapor retarder, and reinforcement sized per plan. An interior stud wall bears on a continuous sixteen-gauge track anchored to the slab with powder-actuated fasteners at sixteen inches on center. A separate cast-in-place concrete housekeeping pad for mechanical and electrical equipment is doweled into the slab with number four bars at eighteen inches on center each way, embedded three inches minimum with epoxy and maintaining a two-inch clearance. Additional continuous number four nosing bars are provided at the pad edge per mechanical and electrical drawings.
CAPILLARY BREAK PER GEOTECHNICAL REPORT AND PROJECT SPECIFICATIONS VAPOR RETARDER PER ARCH DWGS AND PROJECT SPECIFICATIONS SLAB ON GRADE PER PLAN REINF PER PLAN AT CL SLAB CONT 16 GA TRACK TO MATCH STUD SIZE W/ PDF'S AT 16" OC AT CL WALL SLAB ON GRADE PER PLAN INTERIOR STUD WALL PER ARCH DWGS SLAB ON GRADE PER PLAN . PER MECH/ELEC DWGS ADDL #4 CONT NOSING BAR DWGS PER MECH/ELECT EQUIP PER MECH/ELECTRICAL DWGS CIP CONCRETE HOUSEKEEPING PAD PER MECH/ELECTRICAL DWGS #4 DOWELS AT 18" OC EA WAY AT HOUSEKEEPING PAD - EMBED 3" MIN W/ EPOXY CLR 2" CLR 2" 8" REQ'D #4 EA WAY AT 18" OC AT CL HOUSKEEPING PAD SEE FOR CALLOUTS IN COMMON 1 S3.01 #4 EA WAY AT 18" OC AT CL HOUSKEEPING PAD SECTION 1" = 1'-0" 1 S301-1
