Structural · S-P3EEJ

Interrupting Top Reinforcement Detail

Materials

Reinforced Concrete

Elements

Beams Foundations / Footings Reinforcing Roof / Floor Openings

Connections

Rebar Splice / Development

About this detail

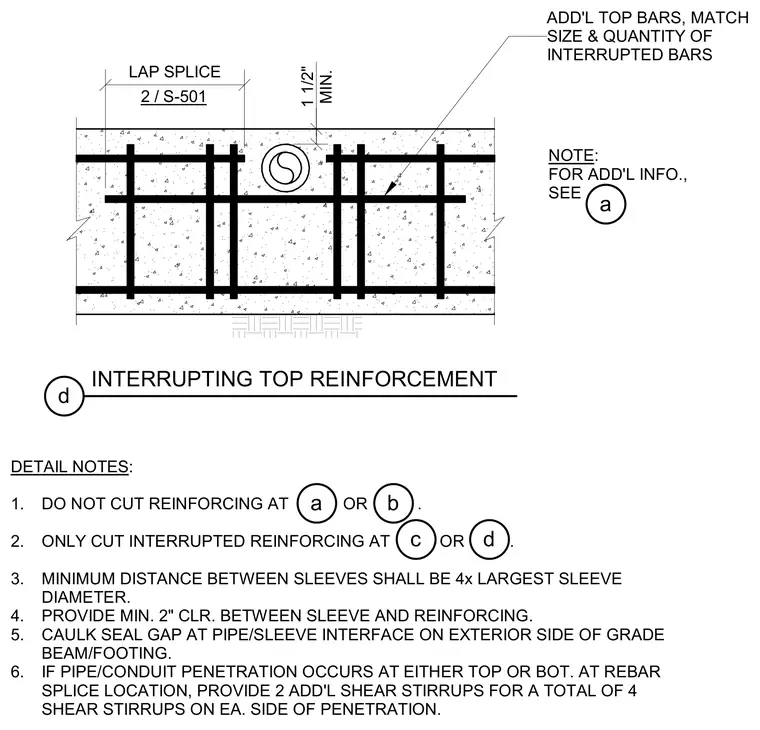

A pipe or conduit sleeve interrupts top reinforcing bars within a concrete member. Additional top bars matching the size and quantity of the interrupted bars are provided alongside a lap splice. A minimum clearance of one and one-half inches is maintained. Detail notes specify requirements for reinforcing cuts, sleeve spacing, concrete cover, exterior caulking, and additional shear stirrups at splice locations.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
