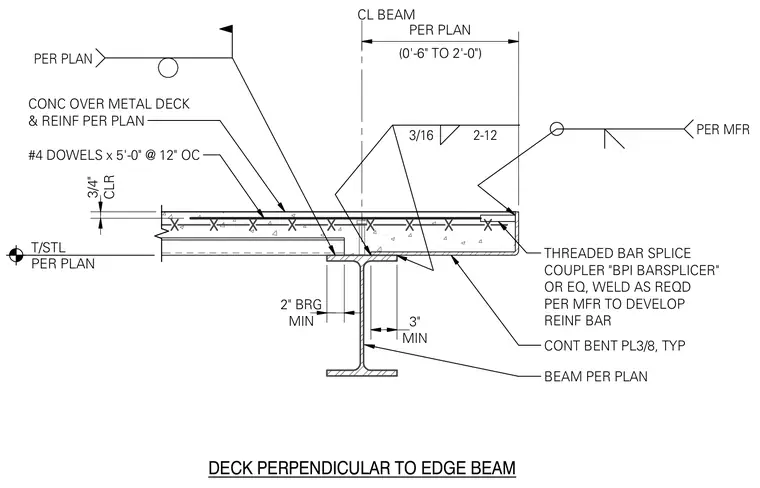

A concrete slab over metal deck bears on a structural steel edge beam with a minimum two-inch bearing width and three-inch minimum clearance. A continuous three-eighths-inch bent plate is welded to the beam with a three-sixteenths-inch fillet weld. Number four dowels measuring five feet long are spaced at twelve inches on center within the concrete slab. A threaded bar splice coupler connects the reinforcement per manufacturer specifications.
DECK PERPENDICULAR TO EDGE BEAM CLR 3/4" BEAM PER PLAN CONT BENT PL3/8, TYP THREADED BAR SPLICE COUPLER "BPI BARSPLICER" OR EQ, WELD AS REQD PER MFR TO DEVELOP REINF BAR PER MFR CL BEAM 3/16 2-12 #4 DOWELS x 5'-0" @ 12" OC CONC OVER METAL DECK & REINF PER PLAN PER PLAN MIN 3" (0'-6" TO 2'-0") PER PLAN MIN 2" BRG T/STL PER PLAN
