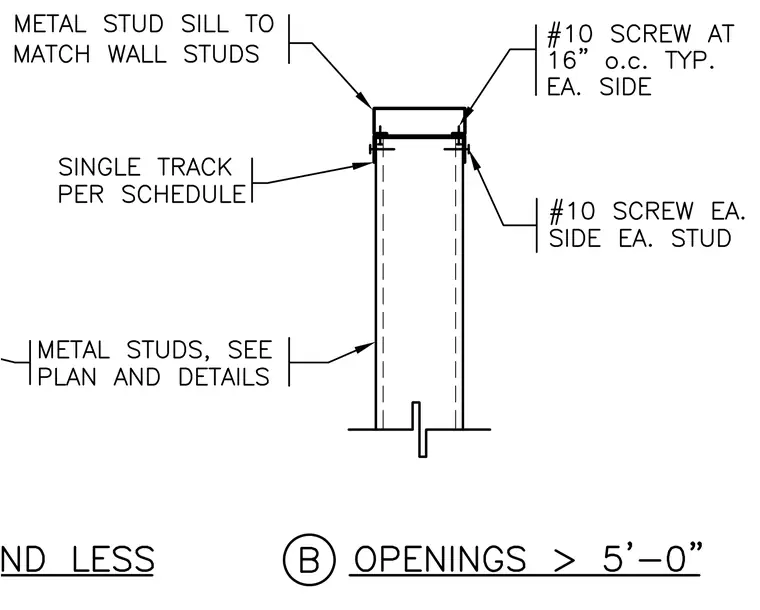

A metal stud sill matching the wall studs is installed atop a single track sized per the schedule. The sill is secured with number ten screws spaced at sixteen inches on center typically on each side. Additionally, number ten screws are fastened to each side of each vertical metal stud.
