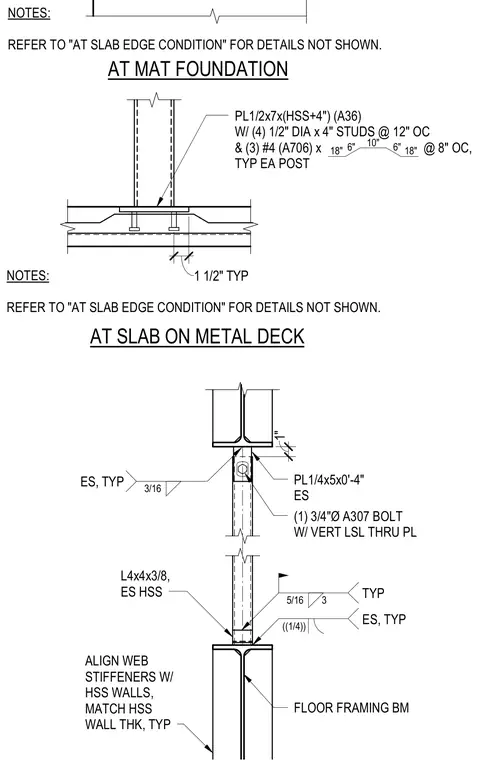

An HSS column connects to floor framing using an L4x4x3/8 angle welded with typical three-inch fillet welds on each side. A plate measuring 1/4 inch by 5 inches by 4 inches is fastened with one 3/4-inch diameter A307 bolt with a vertical LSL through plate on each side. Web stiffeners align with the HSS walls and match the HSS wall thickness. A base or cap plate measuring 1/2 inch by 7 inches includes four 1/2-inch diameter by 4-inch studs at 12 inches on center and three number 4 A706 reinforcing bars at 8 inches on center typically at each post. Notes refer to the 'At Slab Edge Condition' detail for items not shown.
TYP 3 5/16 FLOOR FRAMING BM PL1/4x5x0'-4" ES (1) 3/4"Ø A307 BOLT W/ VERT LSL THRU PL ES, TYP 3/16 ES, TYP ((1/4)) L4x4x3/8, ES HSS 1" ALIGN WEB STIFFENERS W/ HSS WALLS, MATCH HSS WALL THK, TYP AT MAT FOUNDATION NOTES: REFER TO "AT SLAB EDGE CONDITION" FOR DETAILS NOT SHOWN. AT SLAB ON METAL DECK 1 1/2" TYP NOTES: REFER TO "AT SLAB EDGE CONDITION" FOR DETAILS NOT SHOWN. PL1/2x7x(HSS+4") (A36) W/ (4) 1/2" DIA x 4" STUDS @ 12" OC & (3) #4 (A706) x @ 8" OC, TYP EA POST 18" 6" 10" 6" 18"
