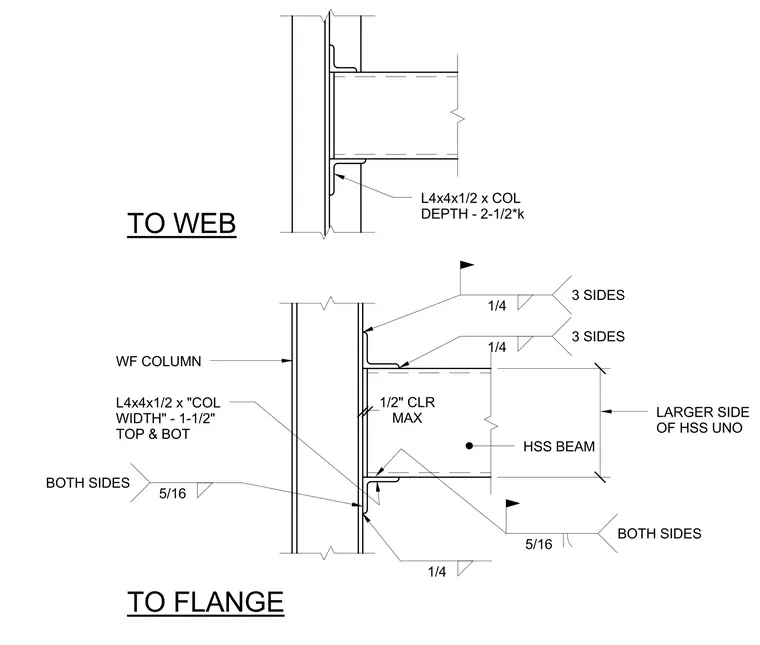

An HSS beam connects to a wide flange column flange and web using L4x4x1/2 structural angles at the top and bottom. The top and bottom angles are sized to the column width minus 1-1/2 inches for flange connections and to the column depth minus 2-1/2*k for web connections. The connection details a maximum clearance of 1/2 inch between the HSS beam end and the column face, utilizing larger sides of the HSS unless noted otherwise. Fillet welds of 5/16 inch are specified on both sides of the vertical legs connecting the angles to the column, while 1/4 inch fillet welds are applied on three sides for the horizontal legs connecting to the HSS beam.
L4x4x1/2 x "COL WIDTH" - 1-1/2" TOP & BOT WF COLUMN L4x4x1/2 x COL DEPTH - 2-1/2*k HSS BEAM TO FLANGE TO WEB LARGER SIDE OF HSS UNO . MAX 1/2" CLR 5/16 BOTH SIDES 1/4 3 SIDES 5/16 BOTH SIDES 1/4 3 SIDES 1/4
