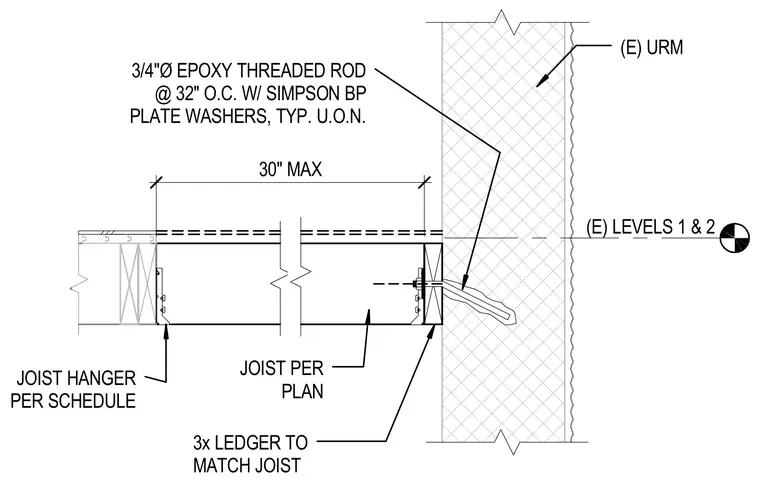

Joists span up to thirty inches maximum parallel to an existing unreinforced masonry wall. A three-times timber ledger matches the joist size and anchors directly into the existing masonry. Three-quarter-inch diameter epoxy threaded rods spaced at thirty-two inches on center secure the ledger using Simpson BP plate washers unless noted otherwise. Joist hangers specified per schedule support the joists framing into the ledger.
JOIST PER PLAN (E) URM 3x LEDGER TO MATCH JOIST (E) LEVELS 1 & 2 3/4"Ø EPOXY THREADED ROD @ 32" O.C. W/ SIMPSON BP PLATE WASHERS, TYP. U.O.N. JOIST HANGER PER SCHEDULE 30" MAX
