Structural · S-P2QDG

Deck Support at Lowered Beam

Materials

Elements

About this detail

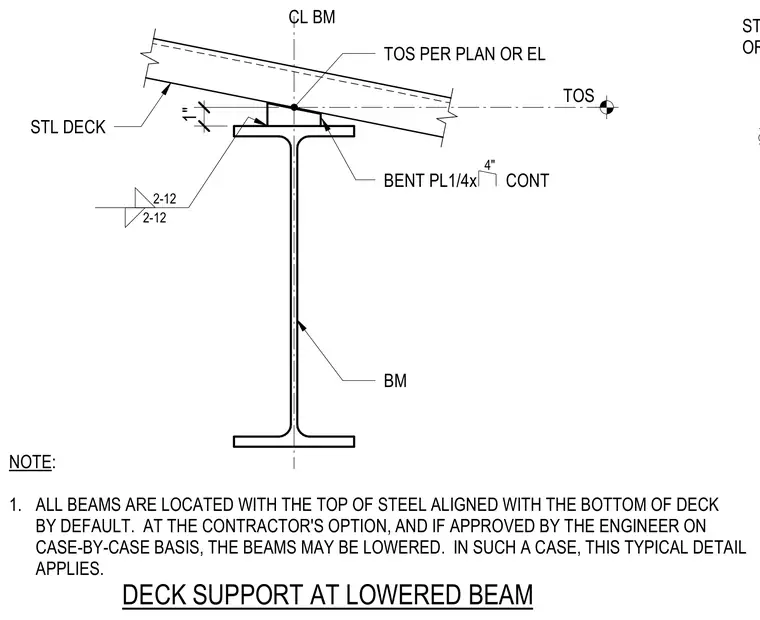

Steel deck bears on a lowered steel beam using a continuous bent plate measuring 1/4 inch thick. The steel deck is oriented parallel, perpendicular, or skewed as required. A note specifies that all beams are located with the top of steel aligned with the bottom of deck by default, but beams may be lowered at the contractor's option with engineer approval.
