Structural · S-P2MNV

Hollow Structural Section Beams to Round Hollow Structural Section Column Connection

Materials

Steel Glass / Glazing

Elements

Columns Beams Walls Connections / Plates

Connections

HSS Connection Welded Connection

About this detail

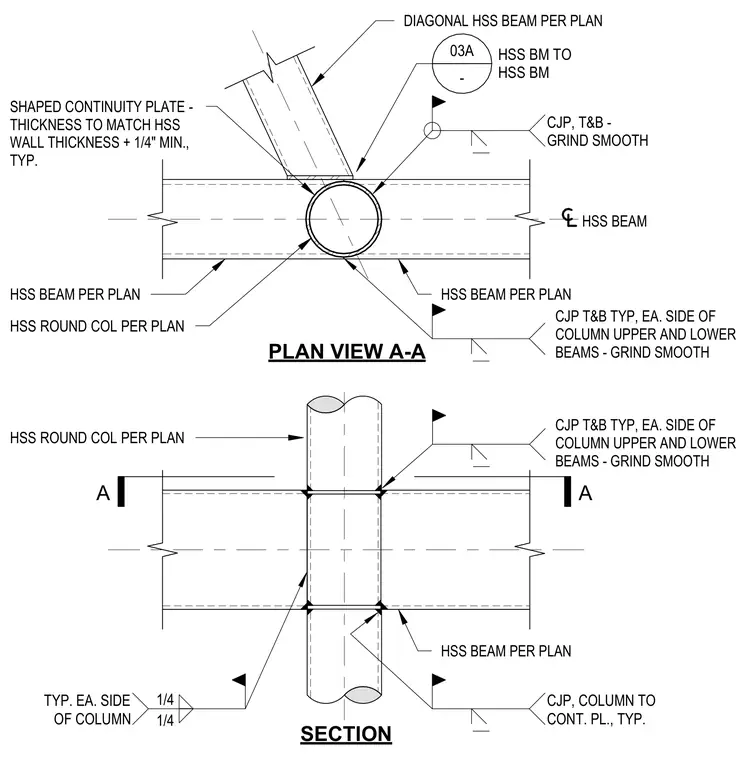

Hollow structural section beams frame into a round hollow structural section column with complete joint penetration welds at the top and bottom, ground smooth on each side of the column. A diagonal hollow structural section beam frames into the connection with a shaped continuity plate whose thickness matches the hollow structural section wall thickness plus one-quarter inch minimum. Complete joint penetration welds secure the column to continuous plates typically, with additional fillet welds specified on each side of the column.
