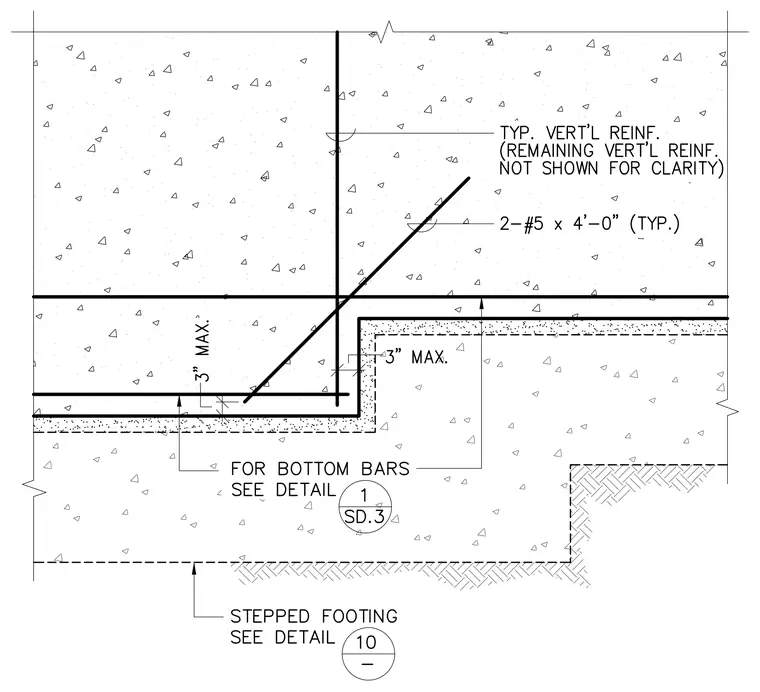

This structural detail shows a stepped bottom condition for a concrete wall panel bearing on a stepped footing. The assembly includes typical vertical reinforcement with two number five bars by four feet zero inches long placed diagonally at the step. Horizontal bottom bars are referenced to detail 1 on sheet SD.3, with a maximum three inch step dimension. The foundation below consists of a stepped footing referenced to detail 10.
