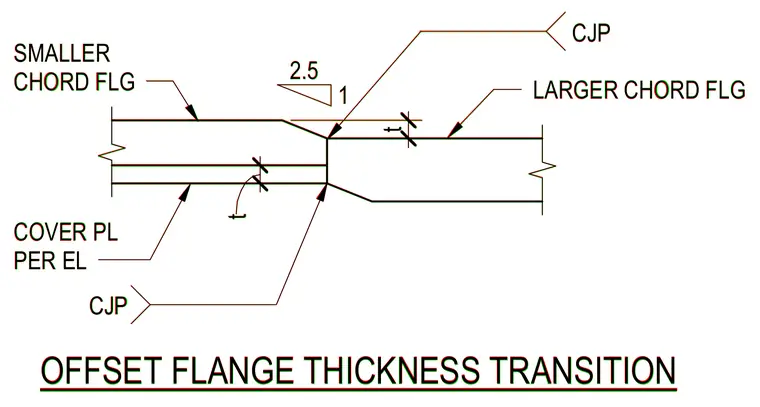

The smaller chord flange transitions to the larger chord flange using a two-and-a-half to one offset slope to accommodate the difference in thickness. A cover plate per elevations matches the flange thickness transition. Complete joint penetration welds join the abutting chord ends and the cover plate.
OFFSET FLANGE THICKNESS TRANSITION COVER PL PER EL SMALLER CHORD FLG CJP CJP LARGER CHORD FLG t t 2.5 1 OFFSET FLANGE THICKNESS TRANSITION COVER PL PER EL SMALLER CHORD FLG CJP CJP LARGER CHORD FLG t t 2.5 1
