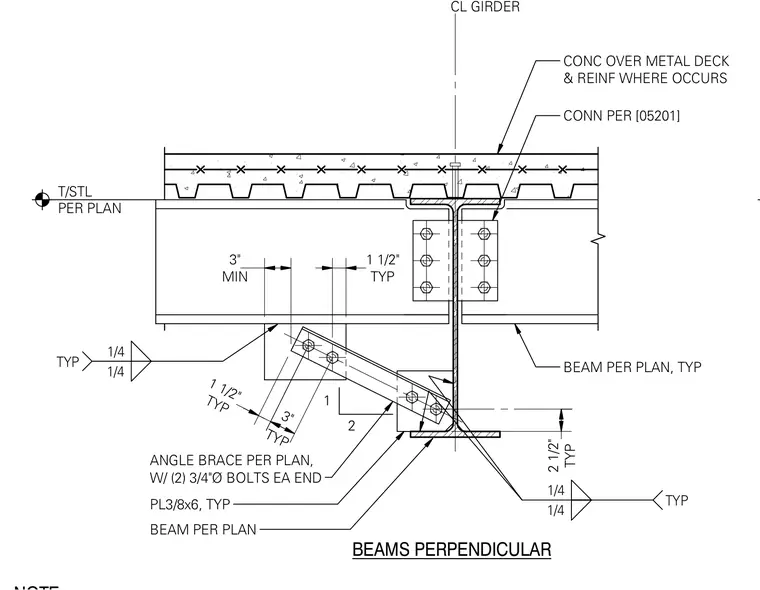

An angle brace connects perpendicular structural steel beams with a 3/8-inch by 6-inch plate welded to the beam flange using typical fillet welds. The angle brace is secured at each end with two 3/4-inch diameter bolts. A concrete slab over metal deck bears on the top flange of the supporting beam per plan. Additional connection details are referenced to specification section 05201.
CONC OVER METAL DECK & REINF WHERE OCCURS CL GIRDER BEAM PER PLAN, TYP CONN PER [05201] ANGLE BRACE PER PLAN, W/ (2) 3/4"Ø BOLTS EA END 1/4 1/4 TYP T/STL PER PLAN BEAM PER PLAN PL3/8x6, TYP MIN 3" TYP 1 1/2" 1/4 1/4 TYP TYP 1 1/2" TYP 3" TYP 2 1/2" 1 2 BEAMS PERPENDICULAR
