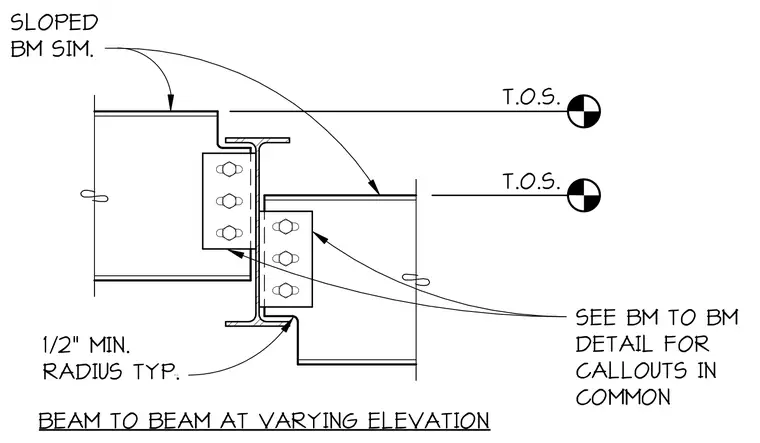

Framing between steel beams at varying top of steel elevations incorporates a sloped beam condition and standard framing connections. A one-half-inch minimum radius is provided typically at the cope or cutouts. Callouts reference standard beam-to-beam details for common sizing and connection requirements.
BEAM TO BEAM AT VARYING ELEVATION T.O.S. T.O.S. SLOPED BM SIM. 1/2" MIN. RADIUS TYP. TEXT SEE BM TO BM DETAIL FOR CALLOUTS IN COMMON
