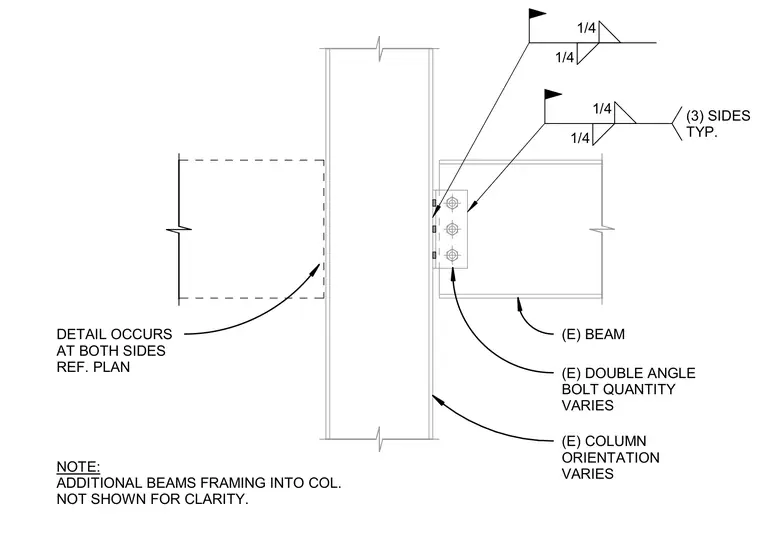

An existing steel beam connects to the flange of an existing steel column utilizing an existing double angle with a variable bolt quantity. The connection detail occurs on both sides of the column per plan. Field weld symbols specify one-quarter-inch fillet welds on three sides typically. Additional framing beams meeting the column are omitted for clarity.
(E) DOUBLE ANGLE BOLT QUANTITY VARIES (E) BEAM (E) COLUMN ORIENTATION VARIES DETAIL OCCURS AT BOTH SIDES REF. PLAN NOTE: ADDITIONAL BEAMS FRAMING INTO COL. NOT SHOWN FOR CLARITY. 1/4 (3) SIDES TYP. 1/4 1/4 1/4
