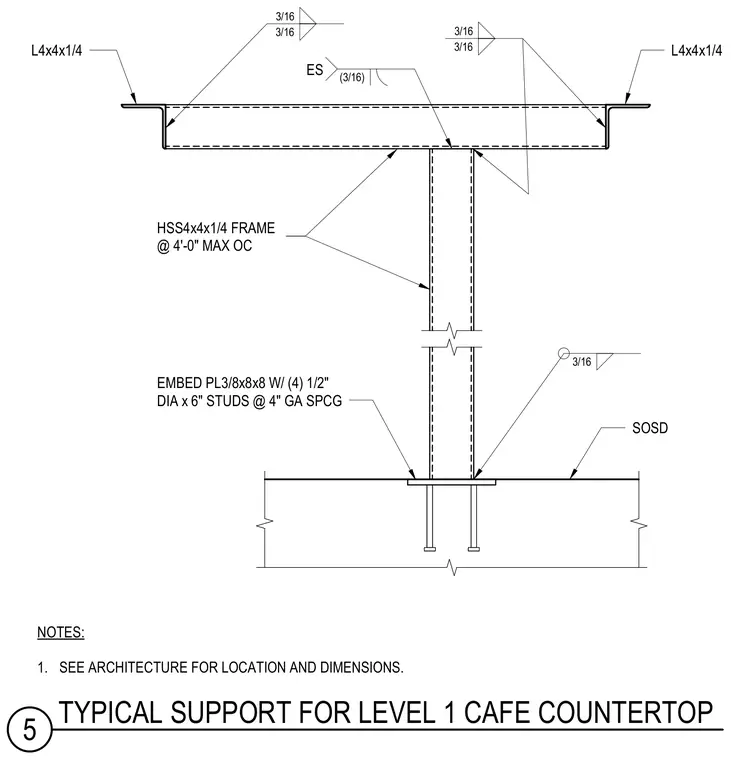

A structural steel frame constructed from hollow structural section HSS 4x4x1/4 members spaced at four feet maximum on center provides support for the level 1 cafe countertop. The frame features L4x4x1/4 angles at the top supporting the counter assembly, welded with three-sixteenths inch fillet welds on each side. The vertical HSS support is anchored at the base with an embed plate measuring three-eighths by eight by eight inches, secured by four half-inch diameter by six-inch studs at four-inch gauge spacing. All structural steel connections are welded with three-sixteenths inch fillet welds.
L4x4x1/4 L4x4x1/4 SOSD EMBED PL3/8x8x8 W/ (4) 1/2" DIA x 6" STUDS @ 4" GA SPCG HSS4x4x1/4 FRAME @ 4'-0" MAX OC 3/16 3/16 3/16 3/16 3/16 ES (3/16) NOTES: 1. SEE ARCHITECTURE FOR LOCATION AND DIMENSIONS. 5 TYPICAL SUPPORT FOR LEVEL 1 CAFE COUNTERTOP
