The assembly consists of a four-inch diameter standard pipe column standing four feet tall, finished with a three-sixteenths-inch thick steel cap secured by a flush weld. The column is welded to a one-half-inch by ten-inch by ten-inch square steel base plate using a one-quarter-inch fillet weld. This plate is anchored into the concrete slab using four three-quarter-inch diameter Titen-HD screw anchors, which are embedded five inches deep. The base plate edges must be ground smooth to eliminate sharp corners, and the entire bollard is to be painted safety yellow.

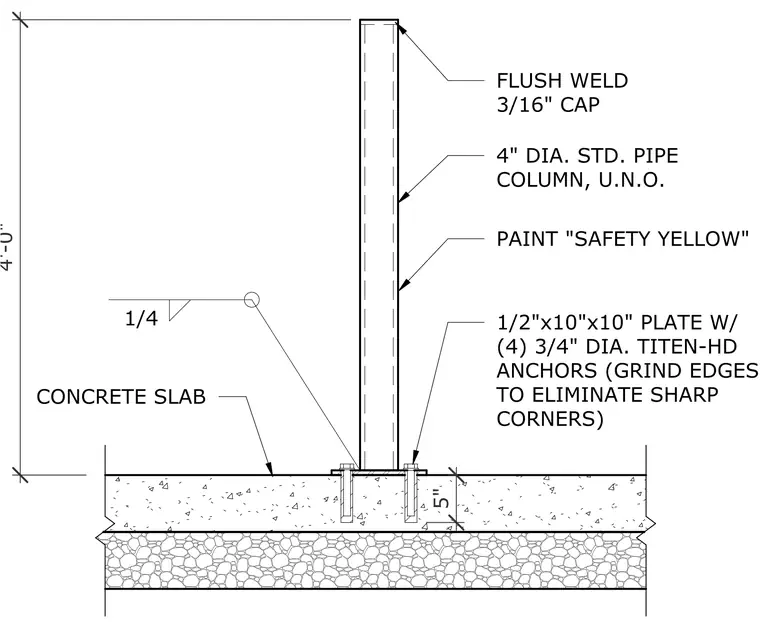

Text on the drawing
4'-0" 1/4 CONCRETE SLAB 1/2"x10"x10" PLATE W/ (4) 3/4" DIA. TITEN-HD ANCHORS (GRIND EDGES TO ELIMINATE SHARP CORNERS) 5" PAINT "SAFETY YELLOW" 4" DIA. STD. PIPE COLUMN, U.N.O. FLUSH WELD 3/16" CAP 3 PIPE BOLLARD W/ ANCHORS
