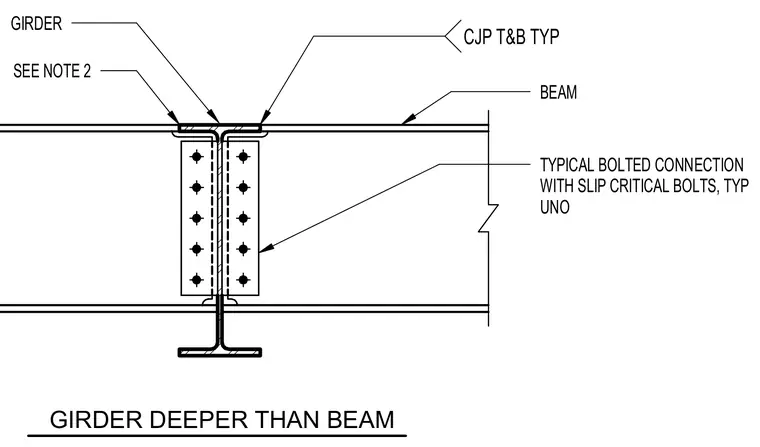

A structural steel beam frames into the web of a deeper girder using a typical bolted connection with slip-critical bolts unless noted otherwise. The beam flanges feature complete joint penetration welds at the top and bottom connecting to the girder web, conforming to project specifications. Additional installation requirements are referenced via drawing notes at the top flange interface.
TYPICAL BOLTED CONNECTION WITH SLIP CRITICAL BOLTS, TYP UNO BEAM SEE NOTE 2 GIRDER CJP T&B TYP GIRDER DEEPER THAN BEAM
