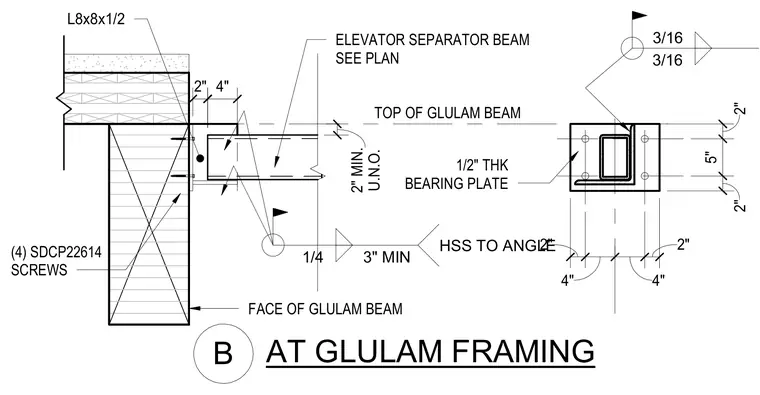

An elevator separator beam bears onto a glulam timber framing member via an L8x8x1/2 structural steel angle and a one-half-inch-thick bearing plate. The steel angle connects to the face of the glulam beam using four SDCP22614 screws. A quarter-inch fillet weld secures the hollow structural section to the angle, specified with a three-inch minimum length unless noted otherwise. Three-sixteenth-inch fillet welds attach additional plate components as detailed.
ELEVATOR SEPARATOR BEAM SEE PLAN AT GLULAM FRAMING B L8x8x1/2 1/4 3" MIN HSS TO ANGLE FACE OF GLULAM BEAM 2" 4" 4" 2" 2" 5" 2" TOP OF GLULAM BEAM 1/2" THK BEARING PLATE 2" 4" (4) SDCP22614 SCREWS 3/16 3/16 U.N.O. 2" MIN.
