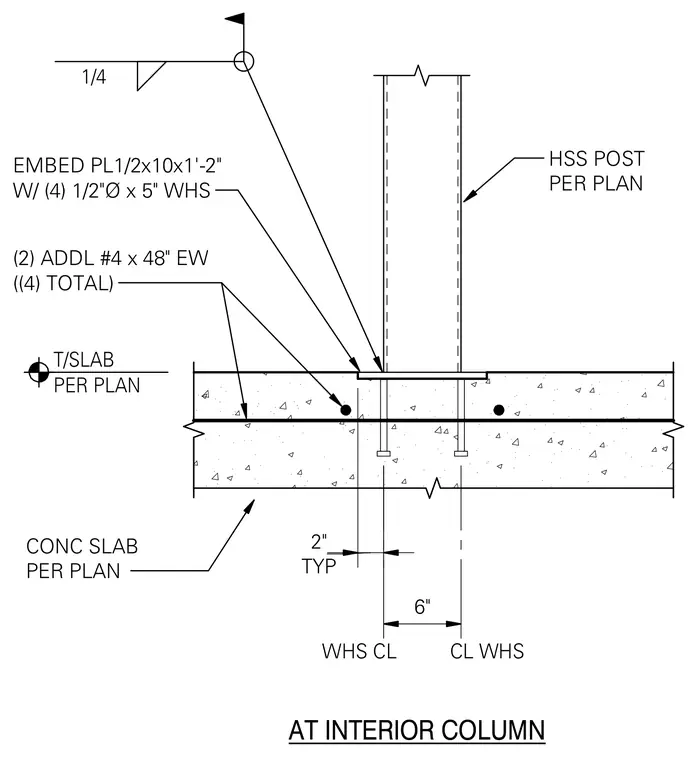

A hollow structural section post bears onto a half-inch by ten-inch by one-foot two-inch steel embed plate welded with a quarter-inch fillet weld. The embed plate is anchored into the concrete slab per plan using four half-inch diameter by five-inch welded headed studs. Additional reinforcing steel consisting of two number four bars each way for a total of four bars is embedded within the concrete slab.
T/SLAB PER PLAN EMBED PL1/2x10x1'-2" W/ (4) 1/2"Ø x 5" WHS (2) ADDL #4 x 48" EW ((4) TOTAL) CONC SLAB PER PLAN TYP 2" 1/4 HSS POST PER PLAN AT INTERIOR COLUMN 6" WHS CL CL WHS
