Typical Steel Column Base Plate Detail

Materials

Concrete Steel Masonry / CMU

Elements

Columns Anchors / Embeds Connections / Plates

Connections

Base Plate / Anchorage Welded Connection

About this detail

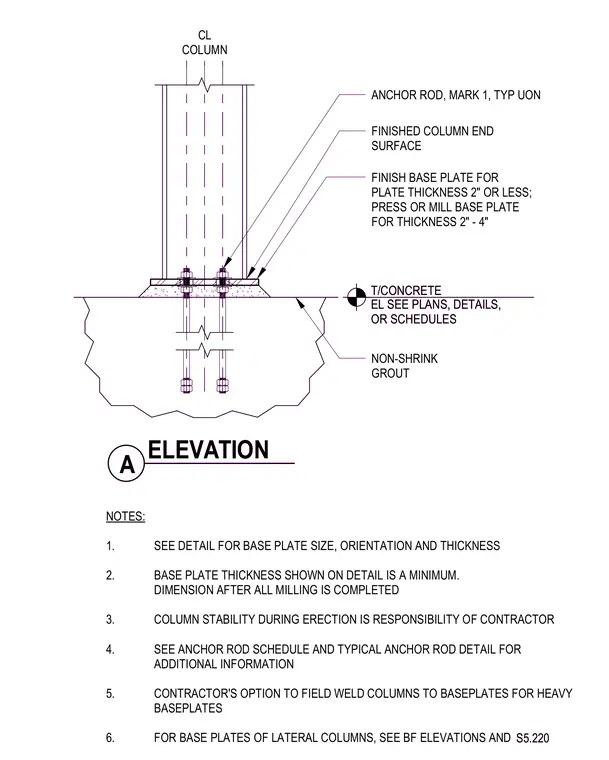

A structural steel column terminates at a finished base plate resting on a layer of non-shrink grout over a concrete foundation. The assembly is secured by anchor rods with nuts and washers. The base plate is specified to be finished for plates two inches or less, and pressed or milled for thicknesses between two and four inches. Column end surfaces are finished to bear uniformly on the plate.
