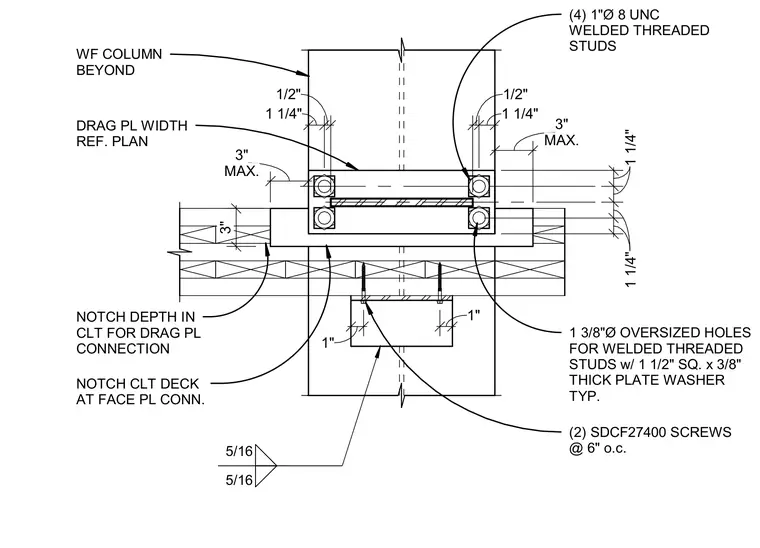

This structural connection detail shows a cross-laminated timber deck notched to accommodate a face plate connection and a drag plate connection at a wide-flange steel column. Four 1-inch diameter 8 UNC welded threaded studs pass through 1-3/8-inch diameter oversized holes and feature typical 1-1/2-inch square by 3/8-inch thick plate washers. Two SDCF27400 screws are installed at 6 inches on center with a maximum spacing of 3 inches. A 5/16-inch fillet weld secures the assembly.
1 1/4" 1/2" 1 3/8"Ø OVERSIZED HOLES FOR WELDED THREADED STUDS w/ 1 1/2" SQ. x 3/8" THICK PLATE WASHER TYP. NOTCH DEPTH IN CLT FOR DRAG PL CONNECTION NOTCH CLT DECK AT FACE PL CONN. WF COLUMN BEYOND (4) 1"Ø 8 UNC WELDED THREADED STUDS DRAG PL WIDTH REF. PLAN 1 1/4" 1 1/4" 1 1/4" 1 1/4" 5/16 5/16 (2) SDCF27400 SCREWS @ 6" o.c. 3" MAX. 3" MAX. 3" 1" 1" 1 1/4" 1/2"
