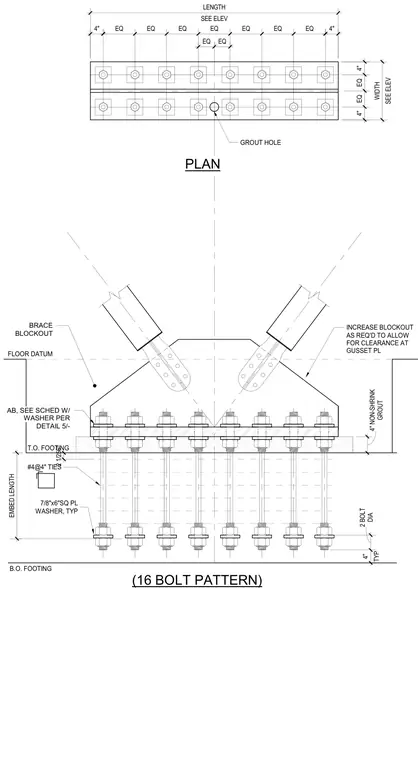

A buckling-restrained brace connection anchors to a concrete footing through a thick base plate and a sixteen-bolt anchor arrangement. Square plate washers measuring seven-eighths by six inches sit under the anchor bolt nuts, positioned above a four-inch non-shrink grout layer. A brace blockout in the concrete floor datum provides clearance for the heavy gusset plates, with blockout dimensions increased as required. Vertical anchor bolts feature two-inch diameters with specified embedment lengths, surrounded by number four ties spaced at four inches on center. A central grout hole is included in the base plate layout, and the foundation incorporates designated top of footing and bottom of footing datums.
(16 BOLT PATTERN) 7/8"x6"SQ PL WASHER, TYP B.O. FOOTING AB, SEE SCHED W/ WASHER PER DETAIL 5/- EMBED LENGTH DIA 2 BOLT TYP 4" #4@4" TIES FLOOR DATUM BRACE BLOCKOUT INCREASE BLOCKOUT AS REQ'D TO ALLOW FOR CLEARANCE AT GUSSET PL GROUT 4" NON-SHRINK PLAN SEE ELEV WIDTH SEE ELEV LENGTH 4" EQ EQ 4" GROUT HOLE 4" T.O. FOOTING 2 1/256" EQ EQ EQ EQ EQ EQ EQ EQ EQ 4"
