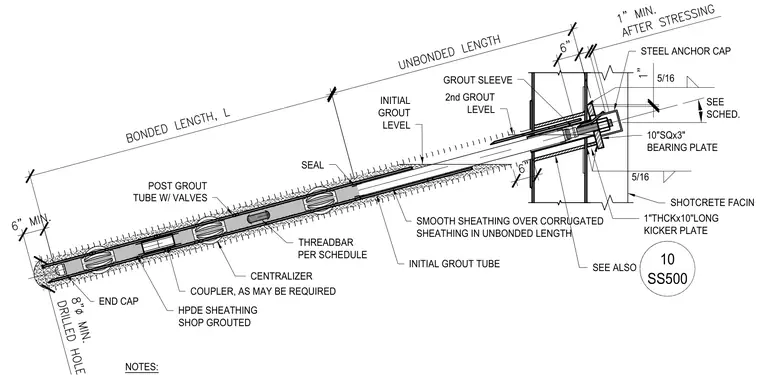

The permanent tieback anchor extends through a drilled hole with a centralizer and end cap, encased in high-density polyethylene sheathing and shop-grouted along its bonded length. Smooth sheathing over corrugated sheathing provides an unbonded length zone with initial and secondary grout levels. At the exterior wall, the threadbar is secured with a 10-inch square by 3-inch thick bearing plate, a 1-inch thick by 10-inch long kicker plate, and a steel anchor cap. Post-grout tubes with valves provide secondary grouting capability behind the shotcrete facing.
POST GROUT TUBE W/ VALVES END CAP THREADBAR PER SCHEDULE SEAL CENTRALIZER COUPLER, AS MAY BE REQUIRED HPDE SHEATHING SHOP GROUTED SEE SCHED. INITIAL GROUT TUBE SMOOTH SHEATHING OVER CORRUGATED SHEATHING IN UNBONDED LENGTH GROUT SLEEVE SEE ALSO INITIAL GROUT LEVEL 2nd GROUT LEVEL SHOTCRETE FACIN NOTES: 10"SQx3" BEARING PLATE 1"THCKx10"LONG KICKER PLATE 5/16 5/16 STEEL ANCHOR CAP 10 SS500
