Structural · S-NYT4T

Steel Angle Bracing Connection with Shim Details

Materials

Steel

Elements

Columns Beams Bracing

Connections

Bracing Connection

About this detail

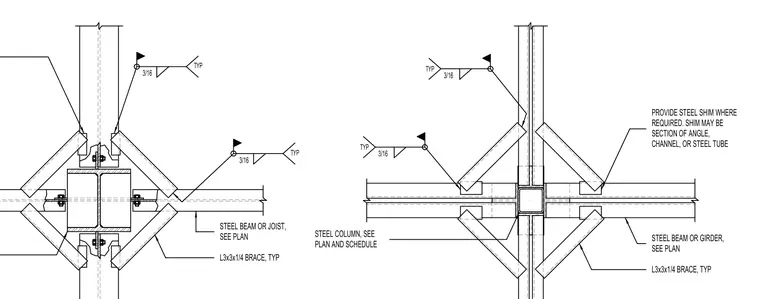

Angle braces sized L3x3x1/4 connect to a steel column and steel beam or girder, sized per plan, with three-sixteenths inch typical fillet welds. Steel shims formed from sections of angle, channel, or steel tube are provided where required at the brace connections. The columns and beams follow the sizes specified in the structural plans and schedules.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
