Structural · S-NYS6K

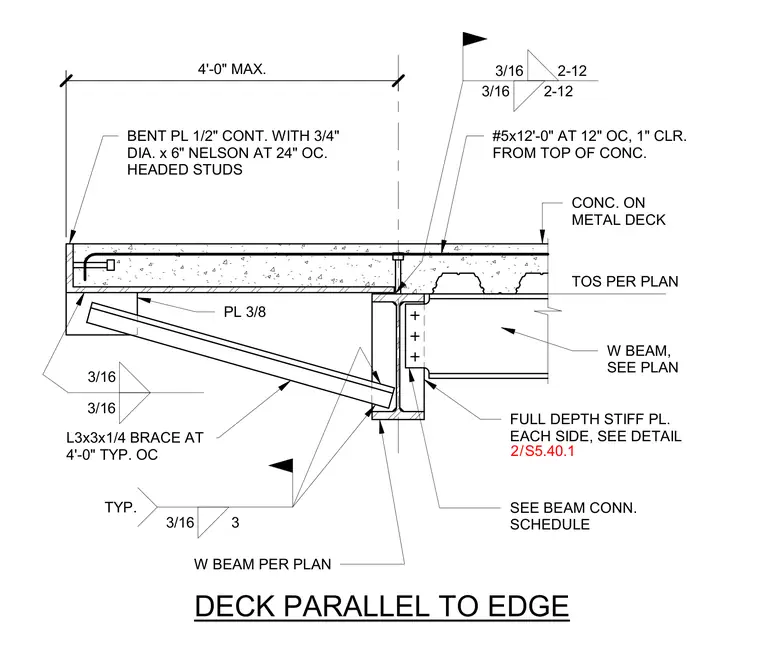

Extended Edge of Floor with Parallel Metal Deck

Materials

Concrete Steel Metal (misc.)

Elements

Beams Floors / Slabs Decks Bracing

Connections

Bracing Connection Shear Stud / Composite Embed Plate

About this detail

The assembly features a concrete slab on metal deck supported by a wide flange beam, with an extended edge framed by a continuous one-half-inch bent plate welded with three-quarter-inch diameter by six-inch Nelson headed studs at twenty-four inches on center. The concrete slab contains number five reinforcing bars at twelve inches on center with one inch of clearance from the top of the concrete. A diagonal brace consisting of a three-by-three-by-one-quarter-inch angle connects to a three-eighths-inch gusset plate and the supporting wide flange beam, welded with three-sixteenths-inch fillet welds. Full-depth stiffener plates are provided on each side of the wide flange beam web, referenced from detail 2 on sheet S5.40.1, and beam connections are sized per the beam connection schedule.
