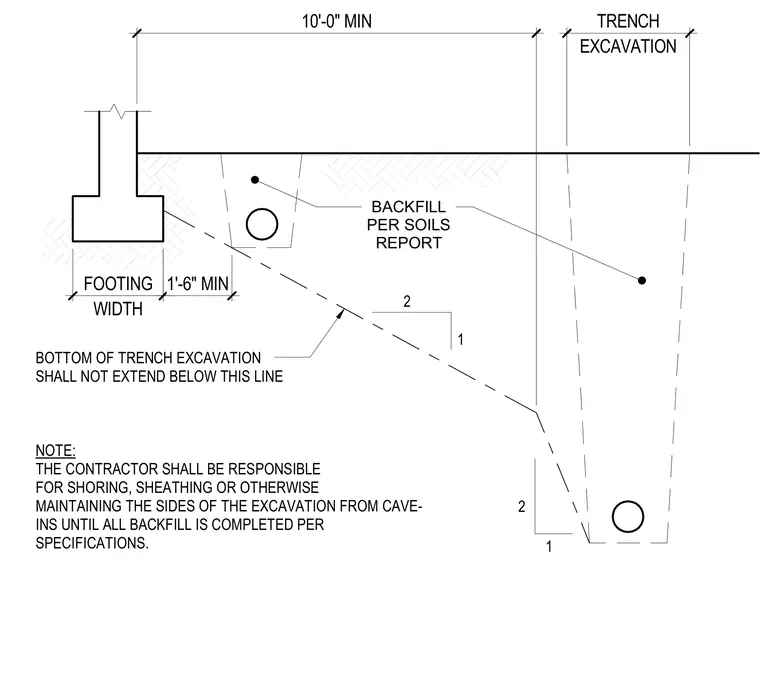

Trench excavation profile running parallel to a foundation footing, maintaining a minimum ten-foot separation and a 2:1 slope configuration. The bottom of the trench excavation shall not extend below the indicated limit line. Backfill is placed per the soils report requirements. The contractor remains responsible for shoring, sheathing, or otherwise maintaining the sides of the excavation from cave-ins until all backfill is completed per specifications.
2 2 1 1 NOTE: THE CONTRACTOR SHALL BE RESPONSIBLE FOR SHORING, SHEATHING OR OTHERWISE MAINTAINING THE SIDES OF THE EXCAVATION FROM CAVE- INS UNTIL ALL BACKFILL IS COMPLETED PER SPECIFICATIONS. BOTTOM OF TRENCH EXCAVATION SHALL NOT EXTEND BELOW THIS LINE BACKFILL PER SOILS REPORT 10'-0" MIN EXCAVATION TRENCH WIDTH FOOTING 1'-6" MIN
