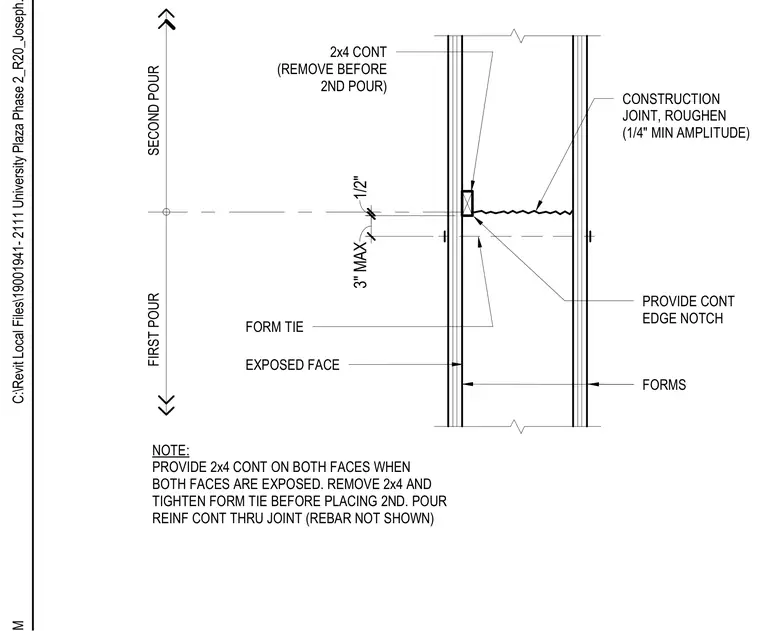

This concrete wall construction joint assembly features a roughened surface with a one-quarter inch minimum amplitude between the first and second pours. A continuous two-by-four wood member creates an edge notch on the exposed face and must be removed prior to placing the second pour. Form ties span across the joint, with a maximum three-inch spacing from the joint line to the tie location and a half-inch clearance dimension. Reinforcing steel continues through the joint while formwork remains on both faces. When both faces are exposed, continuous two-by-four members are provided on both sides, and form ties are tightened after removing the wood blocks.
SECOND POUR FIRST POUR 2x4 CONT (REMOVE BEFORE 2ND POUR) CONSTRUCTION JOINT, ROUGHEN (1/4" MIN AMPLITUDE) PROVIDE CONT EDGE NOTCH FORM TIE EXPOSED FACE FORMS NOTE: PROVIDE 2x4 CONT ON BOTH FACES WHEN BOTH FACES ARE EXPOSED. REMOVE 2x4 AND TIGHTEN FORM TIE BEFORE PLACING 2ND. POUR REINF CONT THRU JOINT (REBAR NOT SHOWN) 1/2" 3" MAX C:\Revit Local Files\19001941- 2111 University Plaza Phase 2_R20_Joseph.M.Gulden.rvt
