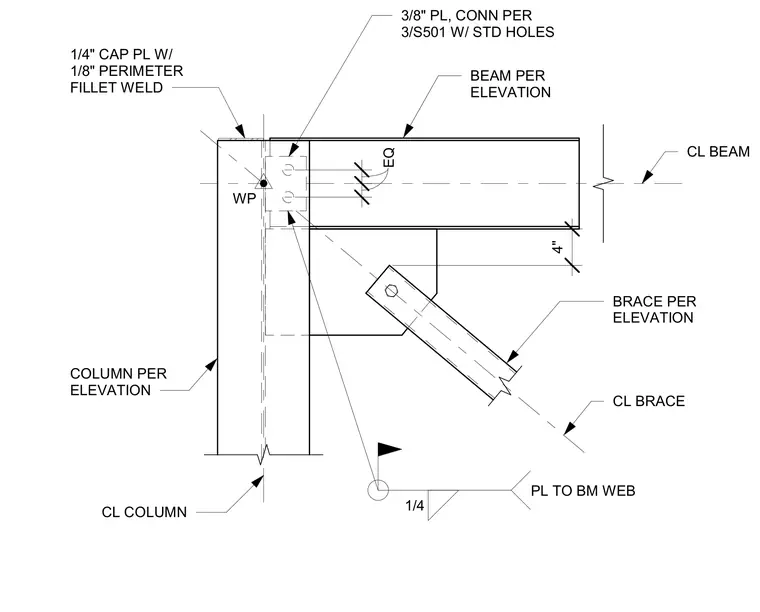

A structural steel top braced frame connection joins a beam and a diagonal brace to a wide-flange column. The column features a one-quarter-inch thick cap plate attached with a one-eighth-inch perimeter fillet weld. A three-eighths-inch connection plate with standard holes connects to the beam web. The diagonal brace frames into the assembly with a one-quarter-inch weld to the beam web at the working point.
BEAM PER ELEVATION COLUMN PER ELEVATION CL BRACE BRACE PER ELEVATION 4" WP CL BEAM CL COLUMN 1/4" CAP PL W/ 1/8" PERIMETER FILLET WELD 3/8" PL, CONN PER 3/S501 W/ STD HOLES 1/4 PL TO BM WEB EQ EQ
