Stirrup Hooks and Tie Bends

Elements

About this detail

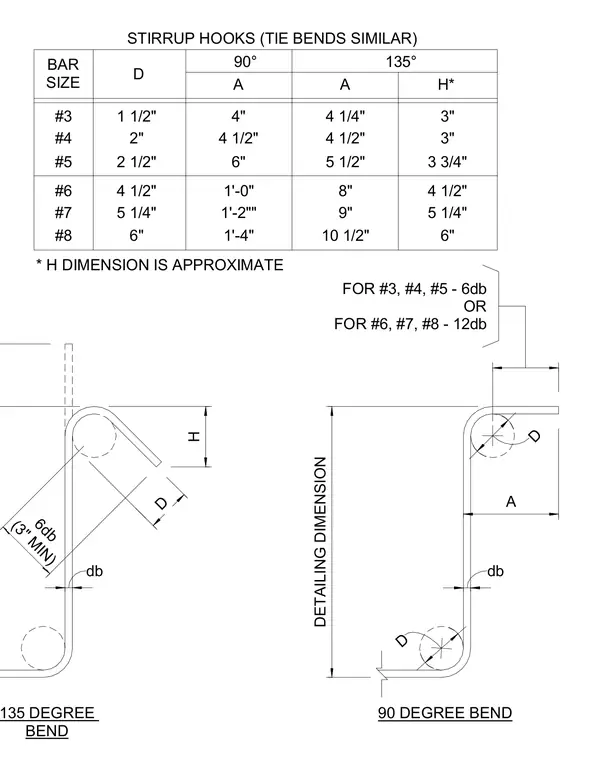

Standard dimensions for reinforcing bar stirrup hooks and tie bends are provided for bar sizes number three through number eight. The table outlines specific bend diameters, extension lengths, and approximate hook heights for both ninety-degree and one-hundred-thirty-five-degree bends. Minimum extension requirements of six bar diameters or three inches apply for smaller bar sizes, while larger sizes require twelve bar diameters. Diagrams illustrate the geometric layout and dimensioning parameters for each bend type.
