A steel column bears on a concrete tilt panel assembly secured by a continuous 3x3x3/8-inch steel angle welded with a quarter-inch fillet weld at four inches on center. A bent plate measuring 3/8-inch by 14-inch by 1 foot 8 inches long is spaced at 48 inches on center and anchored into the concrete with two 3/4-inch diameter by 6-inch headed stud anchors and two 1/2-inch diameter by 24-inch deformed bar anchors. The assembly provides structural connection above the lower spandrel support to the roof deck.

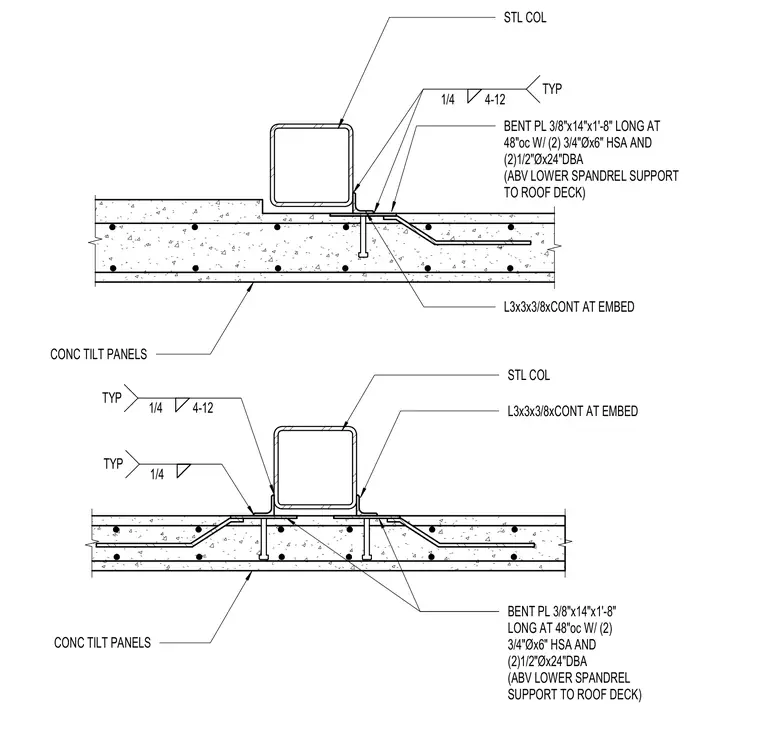

STL COL L3x3x3/8xCONT AT EMBED BENT PL 3/8"x14"x1'-8" LONG AT 48"oc W/ (2) 3/4"Øx6" HSA AND (2)1/2"Øx24"DBA (ABV LOWER SPANDREL SUPPORT TO ROOF DECK) CONC TILT PANELS 1/4 4-12 TYP 1/4 TYP STL COL L3x3x3/8xCONT AT EMBED BENT PL 3/8"x14"x1'-8" LONG AT 48"oc W/ (2) 3/4"Øx6" HSA AND (2)1/2"Øx24"DBA (ABV LOWER SPANDREL SUPPORT TO ROOF DECK) CONC TILT PANELS 1/4 4-12 TYP
