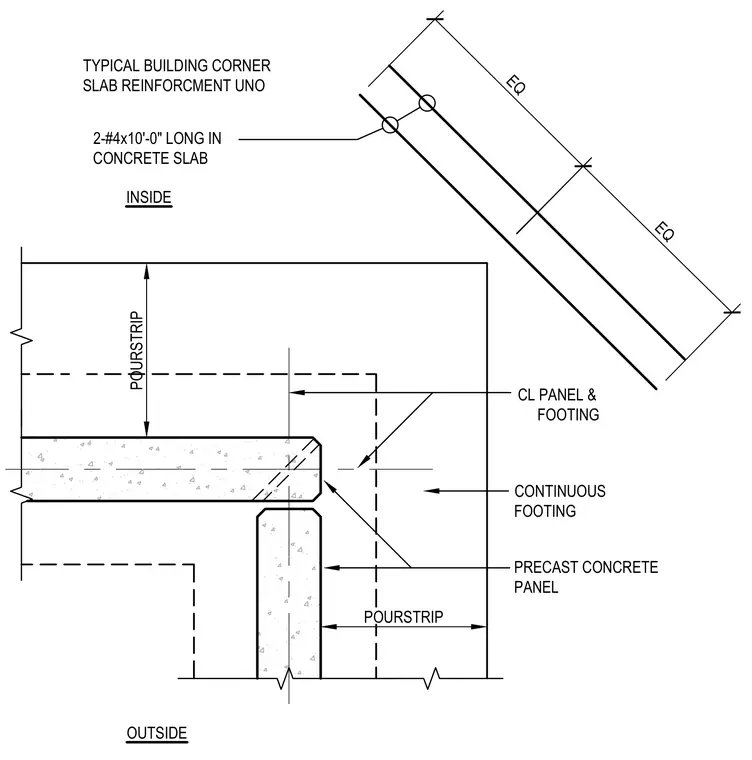

Two number four reinforcing bars measuring ten feet long are placed in the concrete slab at the typical building corner unless noted otherwise. The assembly includes a precast concrete panel, a continuous footing, and a pour strip. Equal spacing dimensions govern the bar placement relative to the centerline of the panel and footing.
EQ EQ 2-#4x10'-0" LONG IN CONCRETE SLAB TYPICAL BUILDING CORNER SLAB REINFORCMENT UNO INSIDE OUTSIDE CL PANEL & FOOTING CONTINUOUS FOOTING PRECAST CONCRETE PANEL POURSTRIP POURSTRIP
